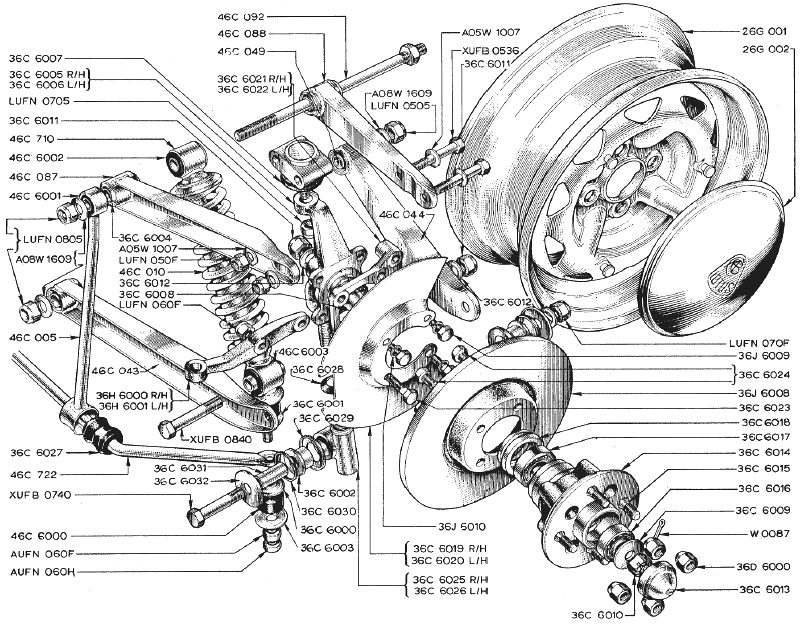

LOTUS EUROPA S1 PARTS MANUALSection C1 -- Suspension -- FrontLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
---|
Click here to open a new window containing a searchable PDF copy. (600K) |
Notes Bulletin Reference | |||||||||||||
36C6007 | 36C6007 | 2 | 2 | Ball Joint Assembly Upper | - More Info - | ||||||||
36C6005 | 36C6005 | 1 | 1 | Vertical Link R/H | - More Info - | ||||||||
36C6006 | 36C6006 | 1 | 1 | Vertical Link L/H | - More Info - | ||||||||
LUFN0705 | LUFN0705 | 2 | 2 | Nut - Ball Joint to Vertical Link | |||||||||
36C6011 | 36C6011 | 2 | 2 | Nut - Nyloc or Stover - Damper to Wishbone (Lower) | 1/2" x 20 TPI, 3/4" head | ||||||||
46C710 | 46C710 | 2 | 2 | Damper and Spring Assembly | |||||||||
46C6002 | 46C6002 | 2 | 2 | Bush - Damper | |||||||||
46C087 | 46C087 | 2 | 2 | Wishbone - Top Leading L/H & Trailing R/H | Up to Chassis No. 0479 | ||||||||
46C6001 | 46C6001 | 2 | 2 | Bush - Anti Roll Bar Link | |||||||||
LUFN0805 | LUFN0805 | 4 | 4 | Nut - Nyloc - Wishbone (Anti roll Bar Link and Damper to Chassis) | |||||||||
A08W1609 | A08W1609 | 4 | 4 | Washer - Wishbone (Anti roll Bar Link and Damper to Chassis) | 1/16" thick, 1" OD, 1/2" ID | ||||||||
46C005 | 46C005 | 2 | 2 | Link - Anti Roll to Chassis | |||||||||
36C6027 | 36C6027 | 2 | 2 | Bush - Anti Roll Bar to Link | |||||||||
46C722 | 46C722 | 1 | 1 | Anti Roll bar | - More Info - | ||||||||
XUFB0740 | XUFB0740 | 2 | 2 | Bolt - Lower Trunnion to Wishbone | 2 1/2" long, 1 1/8" thread length, 7/16" x 20 TPI, 5/8" head | ||||||||
46C6000 | 46C6000 | 4 | 4 | Rubber - Damper to Anti Roll Bar | |||||||||
AUFN060F | AUFN060F | 2 | 2 | Nut - Damper bottom | |||||||||
AUFN060H | AUFN060H | 2 | 2 | Nut - Damper to Anti Roll Bar | |||||||||
36C6004 | 36C6004 | 8 | 8 | Bush - Wishbone | |||||||||
A05W1007 | A05W1007 | 4 | 4 | Washer - Wishbone to Ball Joint (Nut Side) | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
46C010 | 46C010 | 2 | 2 | Spring - Front | - More Info - | ||||||||
36C6012 | 36C6012 | 2 | 2 | Washer - Stub Axle to Vertical Link or 036C6034 | |||||||||
36C6008 | 36C6008 | 2 | 2 | Stub Axle (Front) | - More Info - | ||||||||
LUFN060F | LUFN060F | 2 | 2 | Nut - Steering Arm to Vertical Link | 9/16" Nyloc | ||||||||
46C043 | 46C043 | 2 | 2 | Wishbone - Bottom Leading | |||||||||
36H6000 | 36H6000 | 1 | 1 | Steering Arm R/H | - More Info - | ||||||||
36H6001 | 36H6001 | 1 | 1 | Steering Arm L/H | - More Info - | ||||||||
XUFB0840 | XUFB0840 | 2 | 2 | Bolt - Damper to Wishbone (Lower) | 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI | ||||||||
36C6031 | 36C6031 | 2 | 2 | Sleeve - Lower Trunnion | |||||||||
36C6032 | 36C6032 | 4 | 4 | Washer - Lower Trunnion | |||||||||
36C6002 | 36C6002 | 2 | 2 | Washer - Lower Trunnion to Wishbone | |||||||||
36C6030 | 36C6030 | 4 | 4 | Seal - Lower Trunnion | |||||||||
36C6000 | 36C6000 | 2 | 2 | Plate - Damper to Anti Roll Bar | |||||||||
36C6003 | 36C6003 | 2 | 2 | Retainer - Damper to Anti Roll Bar (Lower) | |||||||||
36C6029 | 36C6029 | 4 | 4 | Washer - Lower Trunnion | |||||||||
36C6001 | 36C6001 | 2 | 2 | Retainer - Damper to Anti Roll Bar (Upper) | |||||||||
36C6028 | 36C6028 | 2 | 2 | Seal - Lower Trunnion | |||||||||
46C6003 | 46C6003 | 2 | 2 | Retainer - Damper to Anti Roll Bar (Lower) | |||||||||
36C6022 | 36C6022 | 1 | 1 | Caliper Mounting Plate L/H | |||||||||
36C6021 | 36C6021 | 1 | 1 | Caliper Mounting Plate R/H | |||||||||
46C049 | 46C049 | 8 | 8 | Bush - Wishbone | |||||||||
46C088 | 46C088 | 2 | 2 | Wishbone - Top Leading R/H & Trailing L/H | Up to Chassis No. 0479 | ||||||||
46C092 | 46C092 | 2 | 2 | Stud - Wishbone (Anti roll bar Link and Damper to Chassis) | 9 3/16" long, 13/16" thread length each end, 1/2" x 20 TPI, 3/4" nut welded to one end | ||||||||
A08W1609 | A08W1609 | 4 | 4 | Washer - Wishbone (Anti roll Bar Link and Damper to Chassis) | 1/16" thick, 1" OD, 1/2" ID | ||||||||
LUFN0505 | LUFN0505 | 4 | 4 | Nut - Nyloc - Wishbone (Anti roll Bar Link and Damper to Chassis) | 1/2" x 20 TPI, 3/4" head | ||||||||
46C044 | 46C044 | 2 | 2 | Wishbone - Bottom Trailing | |||||||||
36C6012 | 36C6012 | 2 | 2 | Washer - Damper to Wishbone (Lower) | |||||||||
A05W1007 | A05W1007 | 4 | 4 | Washer - Wishbone to Ball Joint (Bolt Side) | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
XUFB0536 | XUFB0536 | 4 | 4 | Bolt - Wishbone to Ball Joint | 1/2" head, 2 7/32" long,15/16" threads, 9/32" OD | ||||||||
36C6011 | 36C6011 | 2 | 2 | Nut - Nyloc or Stover - Stub Axle to Vertical Link or 036C6033 | 1/2" x 20 TPI, 3/4" head | ||||||||
26G001 | 26G001 | 5 | 5 | Road Wheel | |||||||||
26G002 | 26G002 | 4 | 4 | Hub Cap | |||||||||
LUFN070F | LUFN070F | 2 | 2 | Nut - Nyloc or Stover - Lower Trunnion to Wishbone | 7/16" x 20 TPI, 11/16" head | ||||||||
36J6009 | 36J6009 | 8 | 8 | Bolt - Brake Disc to Front Hub | 9/16" | ||||||||
36C6024 | 36C6024 | 8 | 8 | Bolt - Dust Cover - Caliper Mounting Plate to Vertical Link | 1/2" x 3/4" long (add 1/2" split washer) | ||||||||
36J6008 | 36J6008 | 2 | 2 | Brake Disc | |||||||||
36C6023 | 36C6023 | 2 | 2 | Bolt - Dust Cover - Caliper Mounting Plate & Steering Arm to Vertical Link | 9/16" x 2.25" long with 1" thread length | ||||||||
36C6018 | 36C6018 | 2 | 2 | Oil Seal - Front Hub | - More Info - | ||||||||
36C6017 | 36C6017 | 2 | 2 | Wheel Bearing - Front Inner | - More Info - | ||||||||
36C6014 | 36C6014 | 2 | 2 | Front Hub | |||||||||
36C6015 | 36C6015 | 8 | 8 | Wheel Stud | Thread: 3/8-24, Knurl Dia.: .519", Length: 1.237", Shoulder Length: .455" - More Info - | ||||||||
36C6016 | 36C6016 | 2 | 2 | Wheel Bearing - Front Outer | - More Info - | ||||||||
36C6009 | 36C6009 | 2 | 2 | D Washer - Hub to Stub Axle | |||||||||
W0087 | W0087 | 2 | 2 | Split Pin - Hub to Stub Axle | |||||||||
36D6000 | 36D6000 | 4 | 4 | Wheel Nut | Thread: 3/8-24 | ||||||||
36C6013 | 36C6013 | 2 | 2 | Grease Cap | |||||||||
36C6010 | 36C6010 | 2 | 2 | Castellated Nut - Hub to Stub Axle | |||||||||
36J6010 | 36J6010 | 8 | 8 | Washer - Brake Disc to Front Hub | 9/16" | ||||||||
36C6019 | 36C6019 | 1 | 1 | Dust Cover - R/H | |||||||||
36C6020 | 36C6020 | 1 | 1 | Dust Cover - L/H | |||||||||
36C6025 | 36C6025 | 1 | 1 | Lower Trunnion Assembly R/H | - More Info - | ||||||||
36C6026 | 36C6026 | 1 | 1 | Lower Trunnion Assembly L/H | - More Info - | ||||||||
XXXX | XXXX | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | Bolt - Caliper to Caliper Mounting Plate | 1 5/16" long, 9/16" thread length, 7/16" x 20 TPI, 5/8" head | ||
XXXX | XXXX | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | Washer - Split - Caliper Bolt to Caliper | 1/8" thick, 25/32" OD, 15/32" ID | ||
LUFN050F | LUFN050F | 4 | 4 | Nut - Nyloc - Wishbone to Ball Joint | 5/16" x 24 TPI, 1/2" head |
