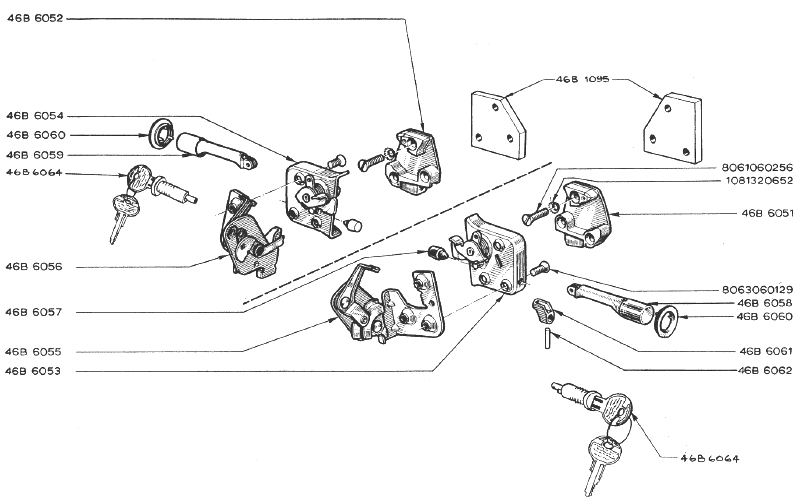

LOTUS EUROPA S1 PARTS MANUALSection B2 -- Body -- Door Latch & StrikeLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (90K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46B6052 | 46B6052 | 1 | 1 | Catch Plate RH | - More Info - | ||||||||
| 46B6054 | 46B6054 | 1 | 1 | Door Lock Striker RH | - More Info - | ||||||||
| 46B6060 | 46B6060 | 2 | 2 | Escutcheon | - More Info - | ||||||||
| 46B6059 | 46B6059 | 1 | 1 | Push Button RH | |||||||||
| 46B6064 | 46B6064 | 2 | 2 | Lock Barrel | |||||||||
| 46B6056 | 46B6056 | 1 | 1 | Door Lock RH | |||||||||
| 46B6057 | 46B6057 | ||||||||||||
| 46B6055 | 46B6055 | 1 | 1 | Door Lock LH | |||||||||
| 46B6053 | 46B6053 | 1 | 1 | Door Lock Striker LH | - More Info - | ||||||||
| 46B6062 | 46B6062 | 2 | 2 | Tension Pin | |||||||||
| 46B6061 | 46B6061 | 2 | 2 | Lock Tab | |||||||||
| 46B6058 | 46B6058 | 1 | 1 | Push Button LH | |||||||||
| 806306129 | 806306129 | 6 | 6 | Bolt - Door Lock Striker to Door Lock | |||||||||
| 46B6051 | 46B6051 | 1 | 1 | Catch Plate LH | - More Info - | ||||||||
| 1081320652 | 1081320652 | 6 | 6 | Washer - Star, Countersunk | |||||||||
| 8061060256 | 8061060256 | 6 | 6 | Bolt - Cross Point Countersunk | 13/16" long all thread, 1/4" x 28 TPI | ||||||||
| 46B1095 | 46B1095 | 2 | 2 | Tapping Plate |
