The Ford Duratec page.
    (and maybe some other engines....)

All pics between 50k-80k

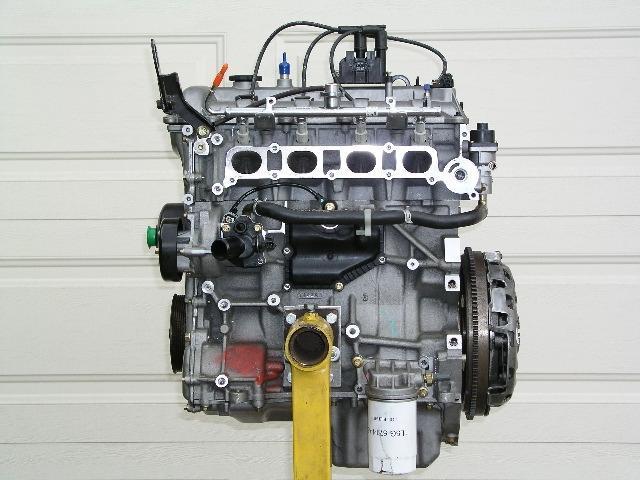

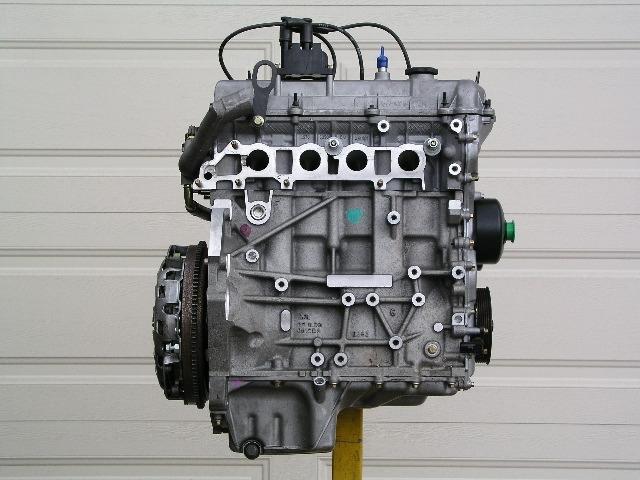

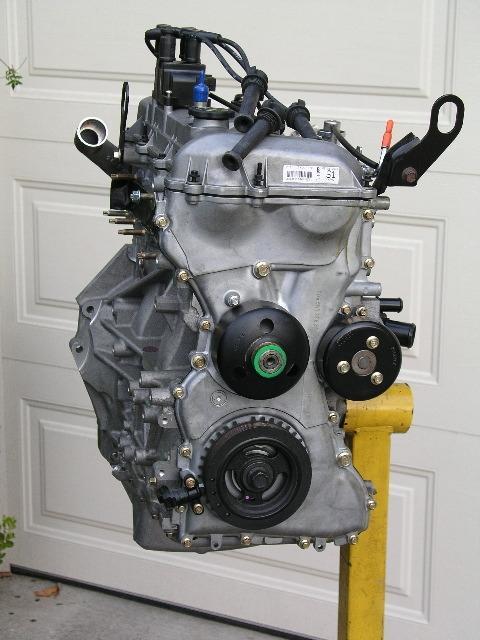

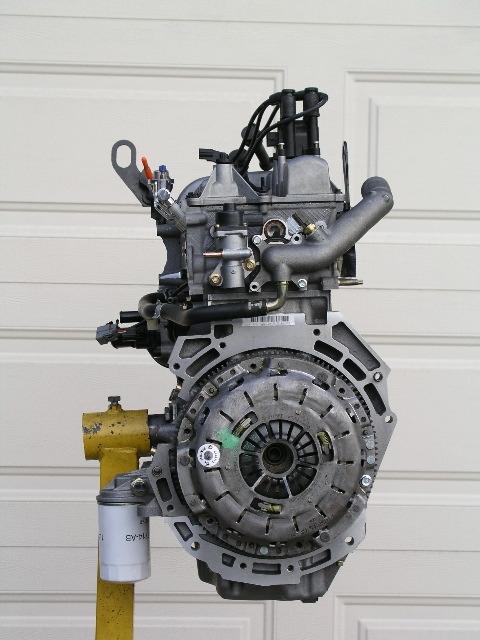

Earl Beyer.    Duratec

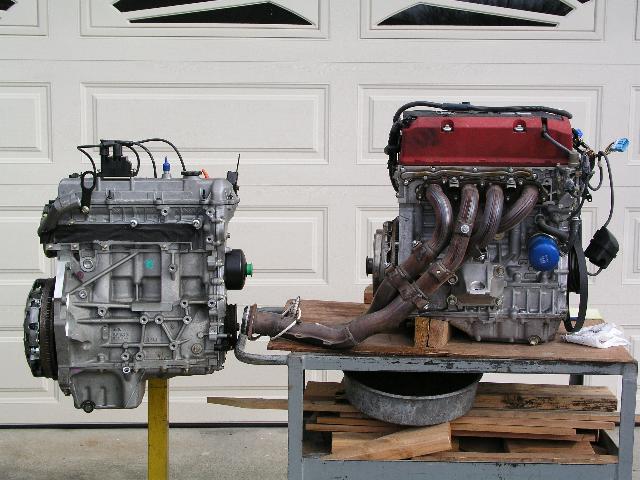

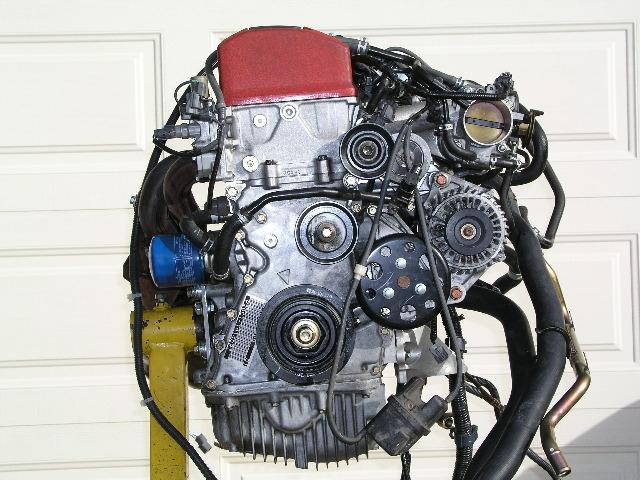

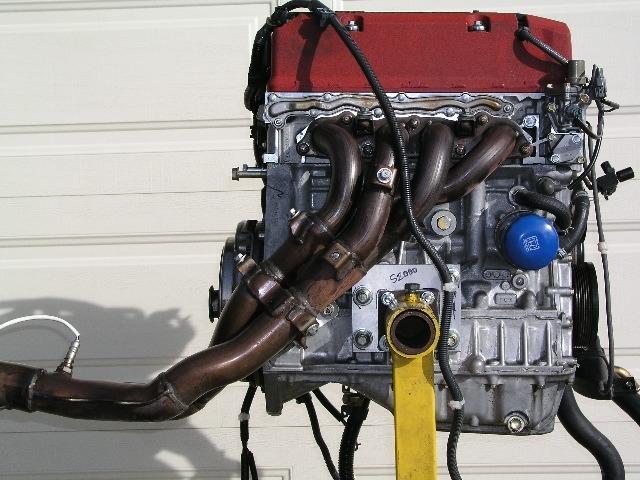

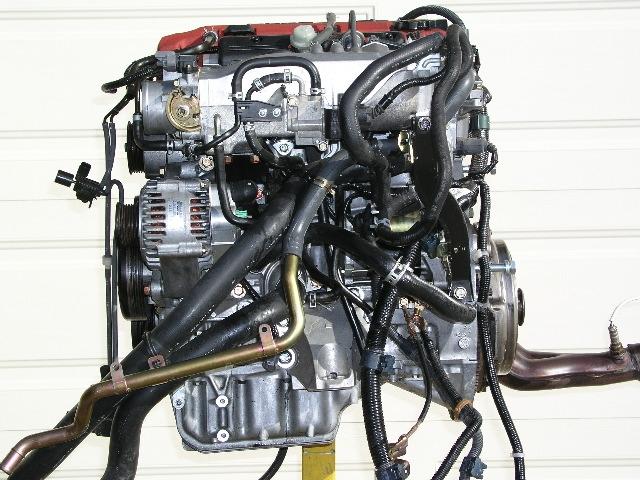

Earl Beyer.    Duratec + Honda S2000

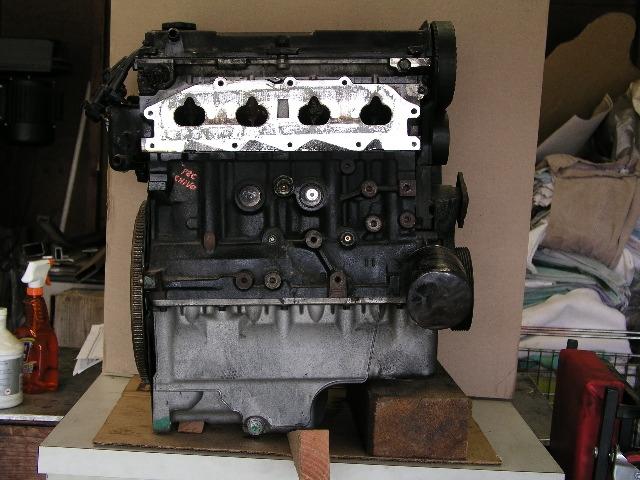

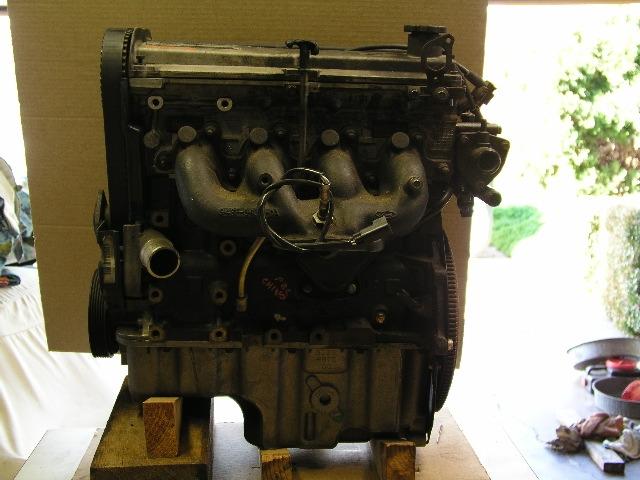

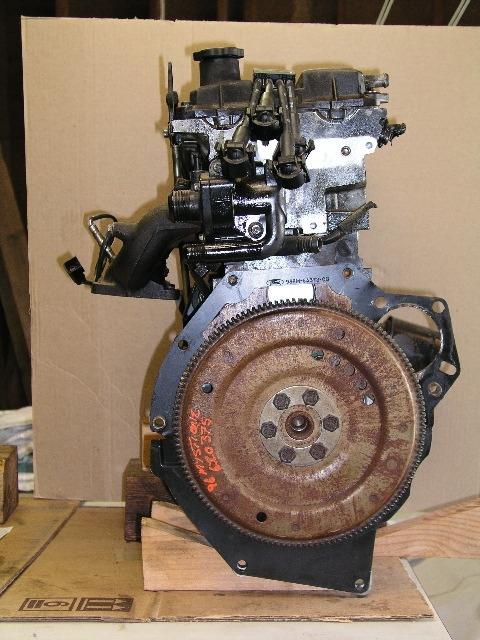

Earl Beyer.    Zetec

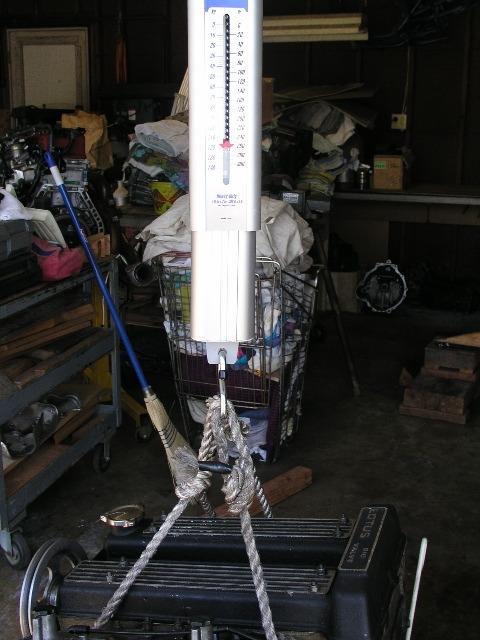

Earl Beyer.    What do these engines weigh?

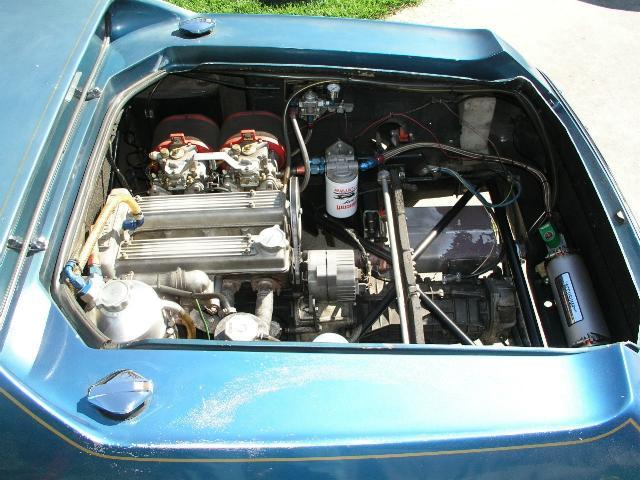

Earl Beyer.    Europa TC wth Drysump

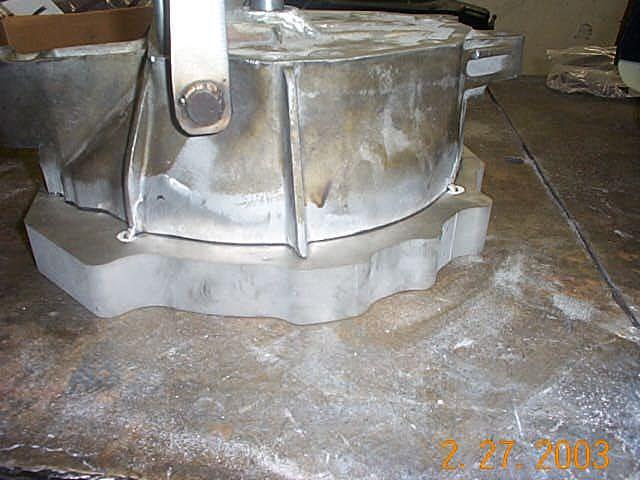

Duratec to Hewland Mk8.   Adapter; John Ehrlich.   Duratec; Gerry Dedonis

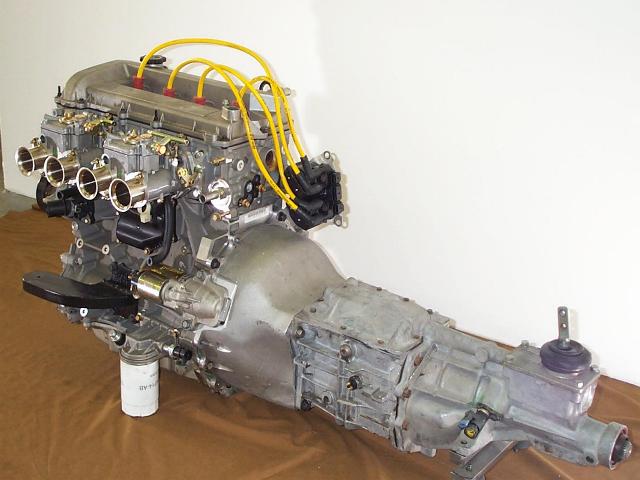

Duratec to T5.   Adapter; John Ehrlich.   Duratec; Gerry Dedonis

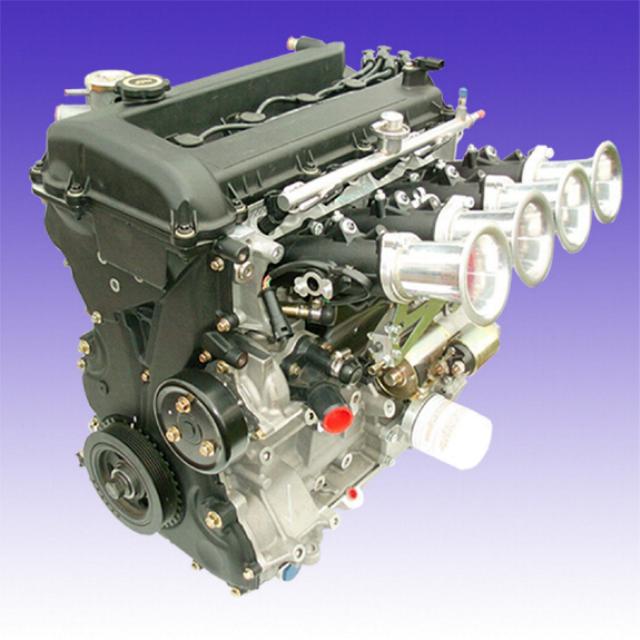

Raceline Duratec

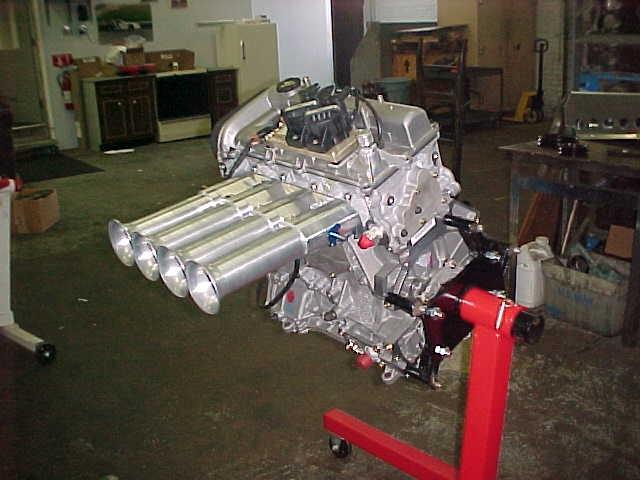

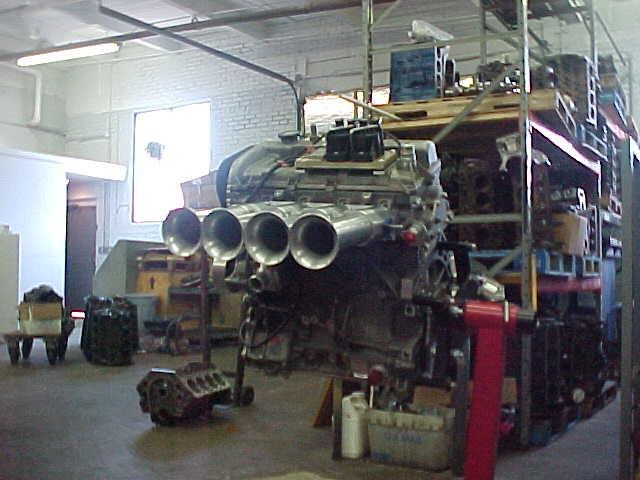

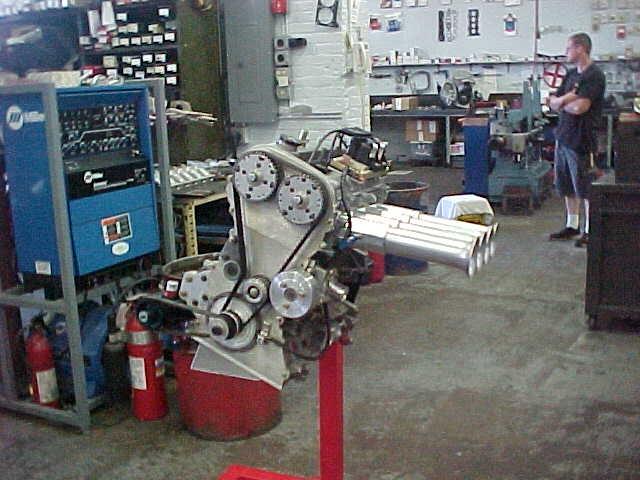

Beane Duratec for Midget




Duratec in Midget

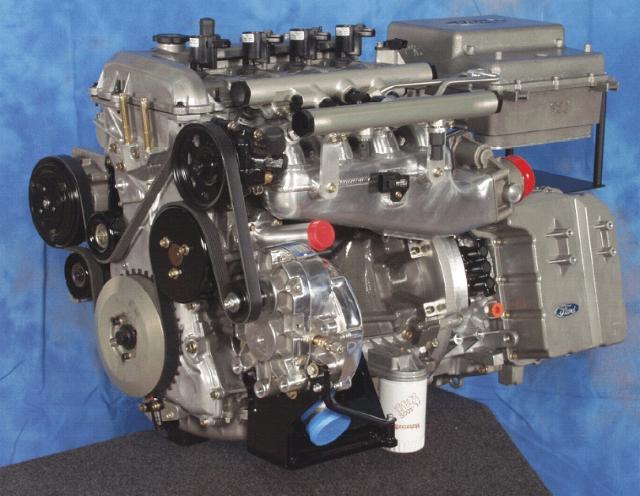

Supercharged Duratec

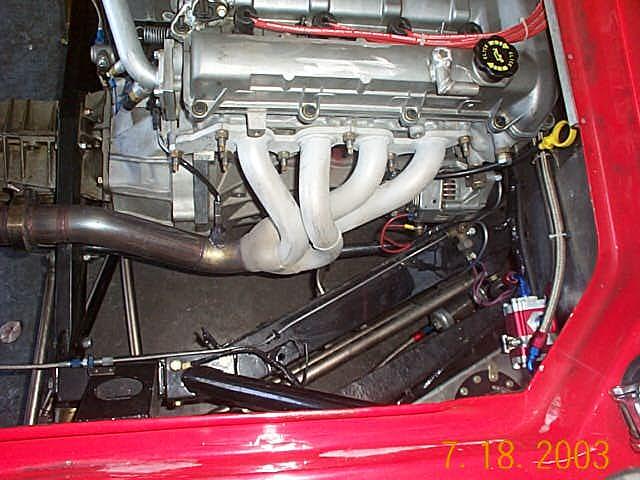

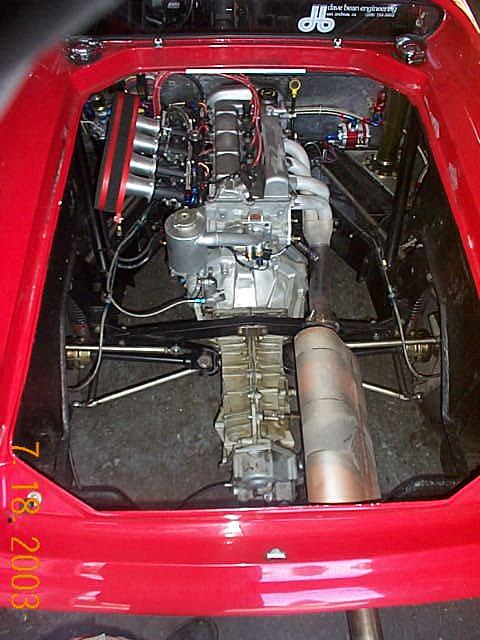

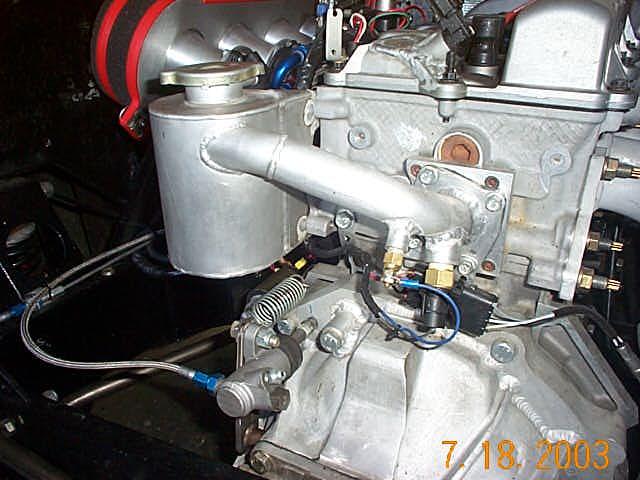

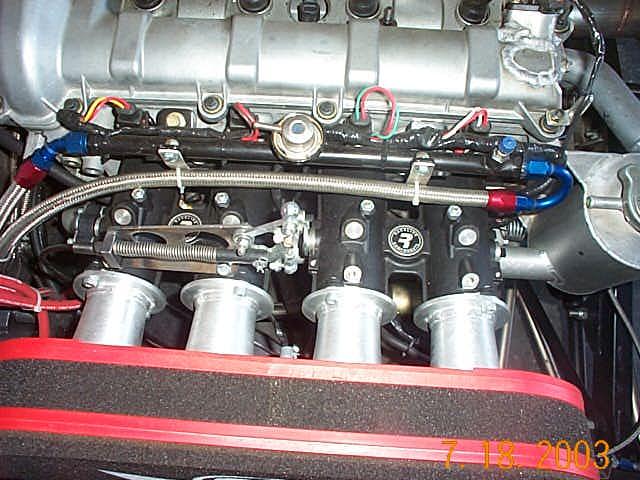

John Zender.  Duratec in Europa

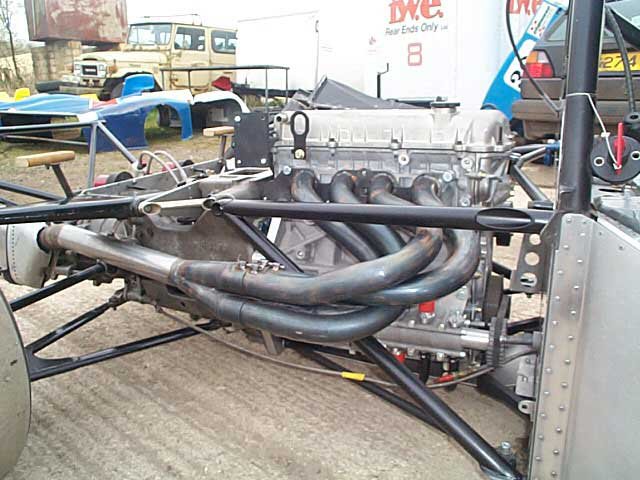

Patrick Dirks.  Duratec in Swift




Engine; Lotus Twin Cam Ford Zetec 2L Ford Duratec 2.3 Honda S2000 2L
Length;
Block trans face
to max valve
cover
19.5" 19.25" 19" 19.5"
Width;
At pan rail
9.5" 9" 12" 11"
Width;
At pan rail to
outside of oil
pump & filter
12.5"
Width;
Across motor
including water
temp housing to
o/s of strombergs
23.5"
Width;
Across motor
o/s exhaust
to o/s intake
      25"
Width;
At flywheel end
      14.5"
Height;
Bottom of pan
to centerline
of crank
 7" 7.75" 8.5" 8.5"
Height;
Bottom of pan
to top of
alternator pulley
22.5"
Height;
Bottom of pan
to top of valve
cover
22.25" 24.25" 25.75" 25.25"


Engine; Lotus Twin Cam Ford Zetec 2L Ford Duratec 2.3 Honda S2000 2L Renault Gordini
Bhp;
Depending on build specifications
110 - 170? 130 - 200? 140 - 250? 200 - 300? 90 - 150?
Weight; 255 lbs 230 lbs 230 lbs 336 lbs 160 lbs
Includes; Intake/strombergs, flywheel, clutch Bare except for
cast iron exhaust
and flex plate
Bare EF flywheel
and clutch
All up.. int, exh,
flywheel, clutch,
alternator, starter,
all hoses and
wiring harnesses
Webers, intake, exhaust, flywheel, starter
        (Honda exhaust
manifold alone
weighs 20lbs)



Transaxle; 352 Type 11
4 sp.
NG3-65
5 sp.
    336-
4 sp.
Weight; 80 lbs 85  lbs     70 lbs





Got more pics I can borrow ????
