July 2007 Activity Log

07/09/07

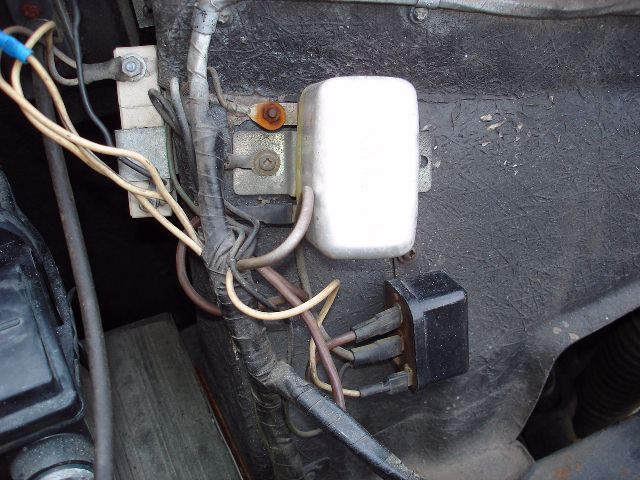

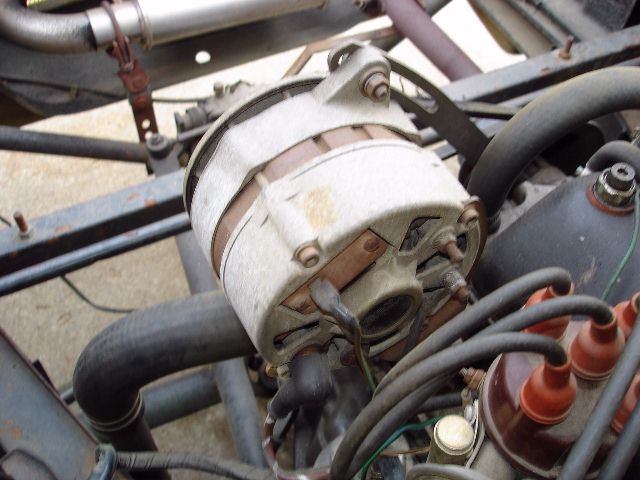

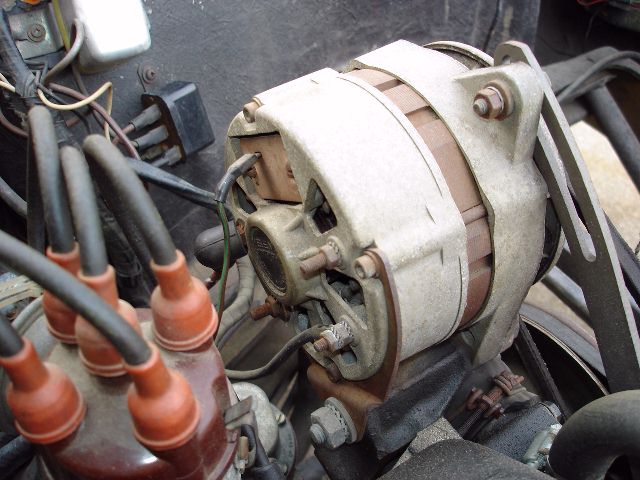

S2 - Took photos of the Motorola alternator and voltage regulator today.

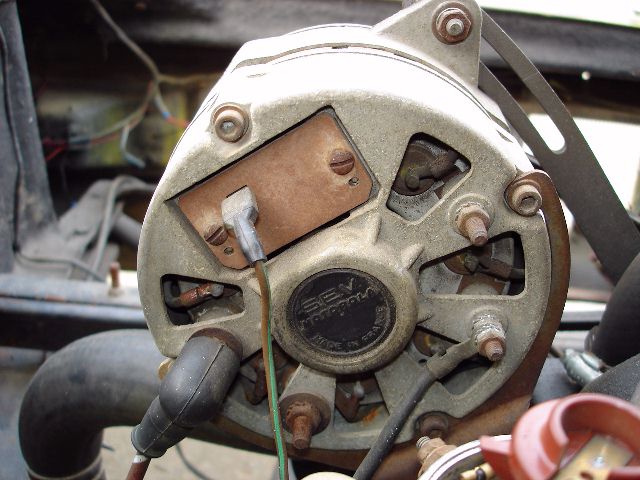

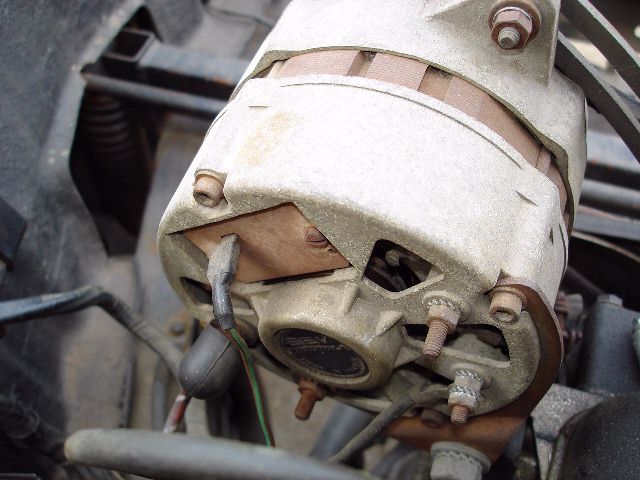

Connections at the alternator are:

Brown/white with boot to the + terminal (big bolt/nut) - To the Amp meter.
Black to alternator frame ground (another big bolt/nut) - To chassis.
Brown/green to the lucar terminal (EX) on the phenolic board - To EX on the voltage regulator.

All of the photos I took today are here.
